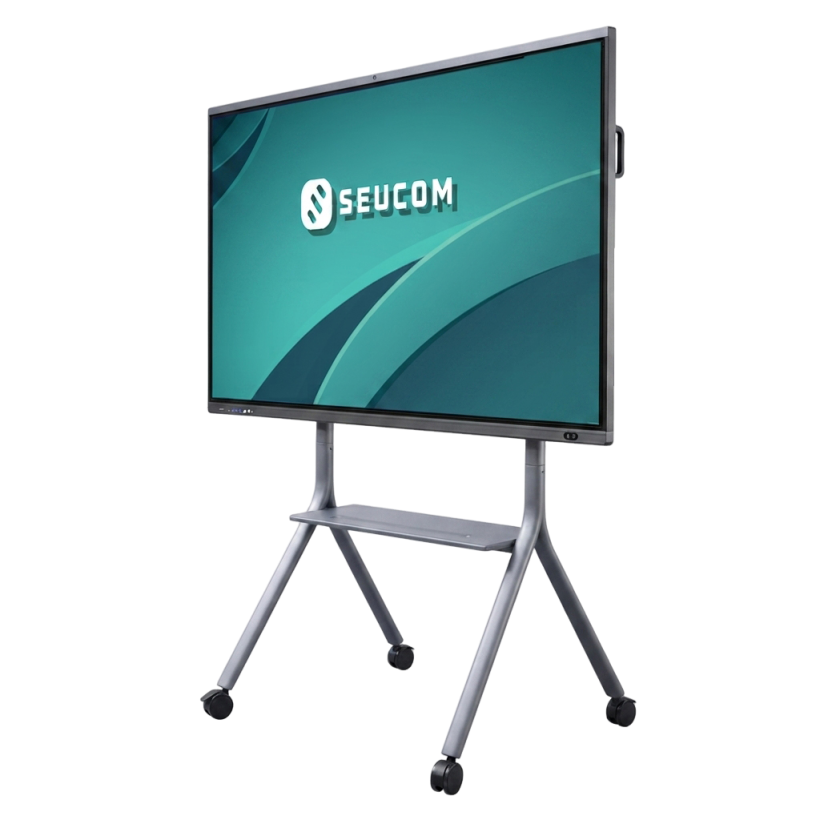

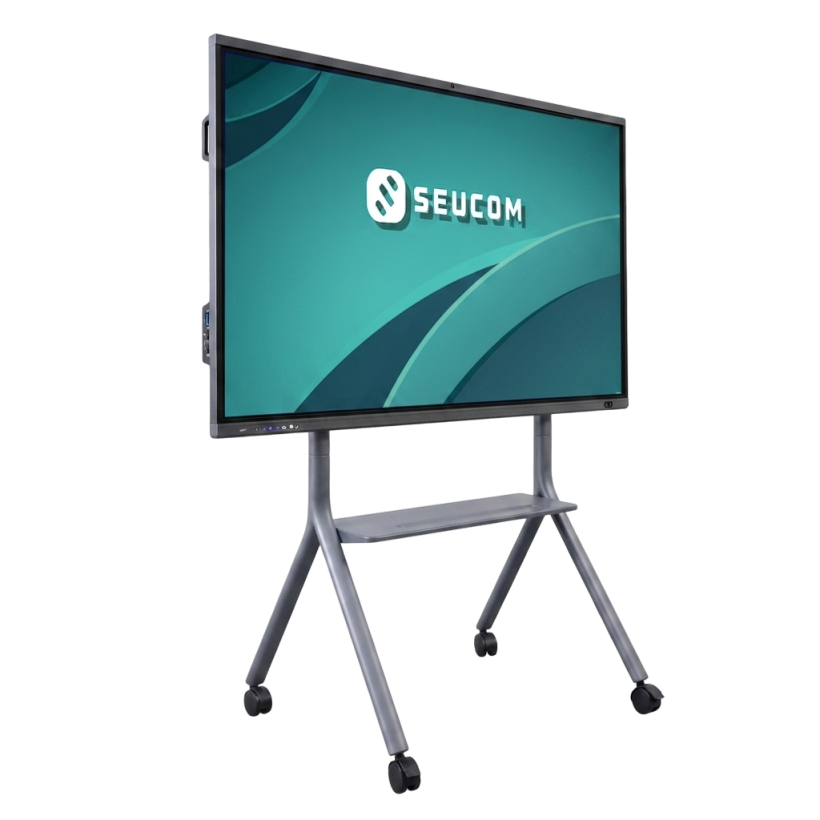

SEUCOM INTERACTIVE BOARD
86 Inch Series
Technology Built For Modern Productivity. Menggabungkan teknologi tampilan visual berkualitas tinggi, sistem sentuh responsif, media komunikasi terintegrasi, dan desain pendingin yang dirancang untuk menjaga performa tetap optimal.
TKDN+BMP
42.25%
Designed For Modern Productivity
SEUCOM Interactive Board 86 inch menghadirkan spesifikasi teknis terbaik di kelasnya. Dengan dukungan Dual OS (Android 13.0 & Windows 11 Pro), prosesor Intel Core i7 Generasi ke-13, RAM 32GB, SSD 3TB, kamera AI 64MP, dan sistem dukungan pembelajaran pintar RTSS (Rakindo Teaching Support System).
Key Features & Highlights
- Diagonal display size: 86(inch)
- Aluminum frame (Grey color)
- Ultra HD Direct type LED (3840x2160/60hz)
- Hardness Glass: Mohs-7 level, Anti-Glare with zero bonding
- Dual OS: Android 13.0 & Windows 11 Pro
- RAM 32GB + SSD 3TB + 32GB
- 64MP AI Camera with 120° FOV
- 8 Wide-area microphones with Echo cancellation beamforming
- Front Speakers: 20Wx2 + Subwoofer 20W
- Screen Finger Print Detector
Product Specifications
Diagonal display size86(inch)
Bezel colorAluminum frame (Grey color)
Panel typeUltra HD Direct type LED
Active area (mm)1895.04 x 1086.96(V)
Resolution3840x2160/60hz
Pixel Pitch0.4935 mm x 0.4935 mm
Hardness GlassMohs-7 level
Glass PanelAnti-Glare glass with zero bonding
Aspect Ratio16:9
Contrast Ratio1200:1 (type)
Dynamic Contrast Ratio4000:1
Brightness400cd/m2
Color depth1.07 billion colors
Viewing angle178 Degree
Lifespan50,000 hours
Auto switch (Windows/Central)Yes, Disconnectable
Touch TechnologyIR touch
Touch on Android40 points
Multi TouchMax 40 points(Windows)
Multi WritingMax 20 points(Windows)
Touch Precision1 mm (over 90% Area)
Auto-CalibrationYes
Anti-lightYes
Minimum object size2mm
Touch Response TimeFirst Point less than 2 ms, Continuation More than 8 ms
Supporting OSDual OS (Android 13.0 & Windows 11 Pro)
Perangkat Lunak (Office)Microsoft Office 2019 Professional
SoftwareRTSS
Front Speakers20Wx2
Subwoofer20W
Total Power Amplifiersless than or equal 60w
TypeWide-area microphones
Number of Microphones8
Android VersionAndroid 13.0
ChipRockchip RK3588
CPUquad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz
GPUMali-G610 MC4
RAM16GB DDR4
Flash256GB
Compliant withWindows, Mac, Linux, Chrome OS
Over-the-Air Updates (OTA)YES
Light SensorYES
NFC Reader/Writeroption
Fingerprint moduleoption
Number of images64MP
Max. resolution & frame rate4208x3120(30fps)
FOV(field of view)120 degree
CPUi7-13th Generation
RAM32GB
SSD3TB
WIFI antennax5pcs
stylus penx 2pcs
Remote controlx1pcs
1.5m power cordx1pcs
1.5m HDMI cablex1pcs
1.5m USB touch cablex1pcs and wall mount kit.
Power Supply100-240 V
Switch On / OffYes
Standby Energy Consumptionless than or equal 0.5 Watt
Power Consumption(Maximum) less than 350W or (Eco) less than 75W
Net Weight70 KG
Gross Weight85 KG
Screen Dimensions (WxDxH)1943.4x97.5x1166 mm
Dimensions Package (WxDxH)2090 x222 x 1307 mm
